光學透鏡

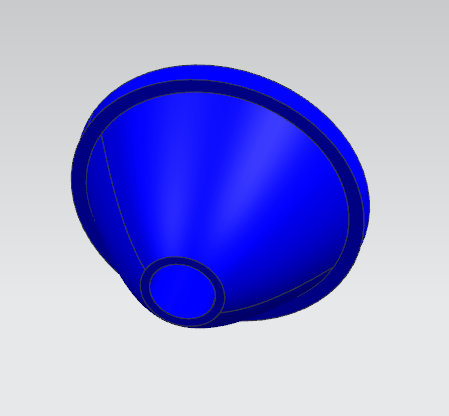

光學射燈單透鏡（02）
|
光學射燈單透鏡產品型號 |
|||||||||
|
NO. |
型號 |
適配光源 |

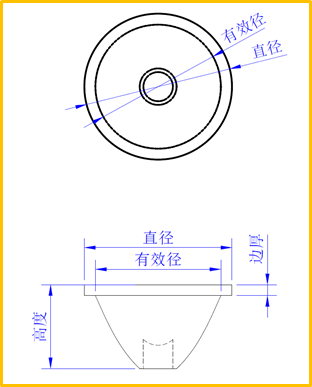

直徑（mm） |
有效徑（mm） |
高度（mm） |
邊厚(mm) |
材料 |
透過率（%） |
角度 |
|
17 |
YP-331 |
28.8 |
26 |
15.76 |
1.4 |
PMMA |
93 |
20 |
|
|
18 |
YP-133-D-52-45-1-J |
COB LED |
52 |
50 |
21.06 |
1.5 |
PC |
88 |
45 |
|
19 |
YP-135-D-68-25-1-J |
COB LED |
68 |
66 |
37 |
3 |
PC |
88 |
25 |
|
20 |
YP-136-D-52-45-1-J |
COB LED |
34 |
32 |
13.16 |
1.5 |
PC |
88 |
38 |
|
21 |
YP-131-D-52-30-1-J |
COB LED |
34 |
32 |
13.16 |
1.5 |
PC |
88 |
30 |
|
22 |
YP-001-D-29-7-1-J |
COB LED |
29 |
25.92 |
16.5 |
2 |
PMMA |
93 |
8 |
|
23 |
YP-002-25燈杯 |
COB LED |
25.5 |
23.5 |
11.56 |
1.45 |
PMMA |
93 |
60 |
|
23 |
YP-125-d-15-25-1-z |
COB LED |
15 |
13 |
8.62 |
1.5 |
PMMA |
93 |
25 |
|
25 |
YP-125-d-15-38-1-z |
COB LED |
15 |
13 |
8.62 |
1.5 |
PMMA |
93 |
38 |
|
26 |
YP-125-d-15-45-1-z |
COB LED |
15 |
13 |
8.62 |
1.5 |
PMMA |
93 |
45 |
|
27 |
YP-125-d-15-60-1-z |
COB LED |
15 |
13 |
8.62 |
1.5 |
PMMA |
93 |
60 |
|
28 |
YP-001-D-29-7-1-J |
COB LED |
29 |
25.92 |
16.5 |
2 |
PMMA |
93 |
7 |
|
29 |
YP-166-D-45-30-3 |
COB LED |
20 |
17.94 |
12.56 |
2 |
PMMA |
93 |
30 |
|
30 |
YP-385 |
COB LED |
34.9 |
34.9 |
21.3 |
2.82 |
PMMA |
93 |
3 |
|
31 |
XHP-80度 |
COB LED |
44 |
41 |
23.59 |
3 |
PMMA |
93 |
80 |
|
32 |
YP-441 |
COB LED |
41 |
38 |
12.3 |
1.2 |
PMMA |
93 |
45 |
